Introduction
Warehouse operations face constant challenges with ergonomic lifting, repetitive strain injuries, and inefficient material handling. Overexertion from manual material handling costs U.S. businesses $13.7 billion annually, with the transportation and warehousing sector reporting 77.1 musculoskeletal disorder cases per 10,000 workers—significantly higher than the private sector average. The right lift equipment directly impacts both productivity and worker safety.
Presto Lifts has manufactured hydraulic and pneumatic lift tables in the United States for decades. Their lineup covers pallet positioning, work positioning, and heavy-duty platform lifting—each model engineered for a specific type of warehouse demand.
This guide covers the top 5 Presto lift models for warehouse operations, with specifications and practical guidance for matching each unit to your specific workflow.
TL;DR
- Presto manufactures scissor lift tables, pallet positioners, and portable lifts designed for warehouse ergonomics and load handling
- The top 5 models cover pallet positioning, portable workstation lifting, die handling, tilt-top use, and heavy-duty platform lifting
- Selection depends on load capacity, lift height range, platform size, mobility needs, and specific warehouse tasks
- All models are ANSI-compliant and engineered to reduce manual material handling injuries
- Source Equipment Company helps you identify the right Presto model based on your load specs, floor layout, and task requirements
Overview of Presto Lifts in Warehouse Operations
Presto Lifts are hydraulic and pneumatic lift tables and positioners designed to raise, lower, tilt, or position loads at ergonomic working heights in warehouse and industrial environments. By keeping loads at the right working height, they reduce the strain that drives most warehouse musculoskeletal injuries.
The case for ergonomic lift equipment is well-documented:
- Ergonomic interventions reduce workers' compensation claim frequencies by 66% and costs per employee by 81%
- Hydraulic lift tables in manufacturing settings have delivered a 70% reduction in back injuries
- Pallet positioners have eliminated lost workdays entirely in palletizing operations
The models below were selected based on warehouse-specific design, load handling range, and reliability across common tasks — palletizing, order picking, assembly, and dock loading.

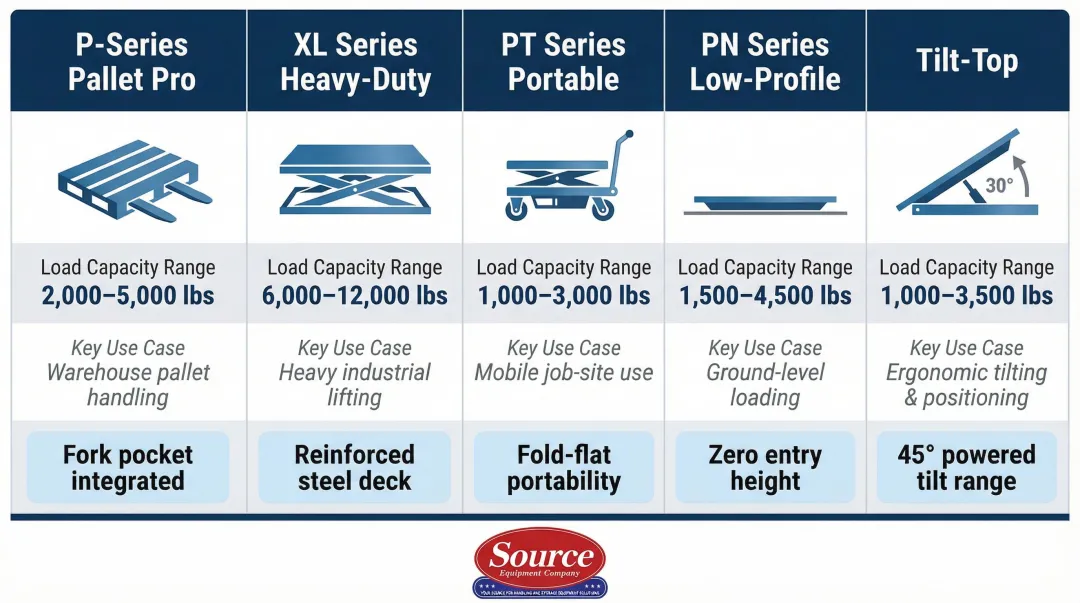

Top 5 Presto Lift Models for Warehouse Operations
These models were chosen based on load capacity, lift range, platform versatility, safety certifications, and fit for common warehouse tasks.
Presto P-Series Pallet Pro Scissor Lift
The Pallet Pro serves as Presto's flagship pallet positioner, engineered for high-cycle warehouse environments where pallets need continuous raising or lowering to maintain ergonomic working height. This model stands out with automatic self-leveling capability, high load capacity, and compatibility with standard pallet dimensions. The unit meets ANSI MH29.1, MH29.2, and B56.10 standards.
| Specification | Details |
|---|---|
| Load Capacity | 300 lbs to 4,500 lbs |
| Lift Height Range | 9.5 inches (minimum) to 27.75 inches (maximum) |
| Key Features | Automatic pneumatic leveling, 360° turntable with anti-friction bearings, pneumatic airbag operation requiring only shop air |
The turntable top allows workers to spin loads for nearside access, eliminating the need to walk around the unit. Once the airbag is charged with shop air, the system automatically adjusts as weight is added or removed, maintaining a consistent working height throughout the loading or unloading cycle.

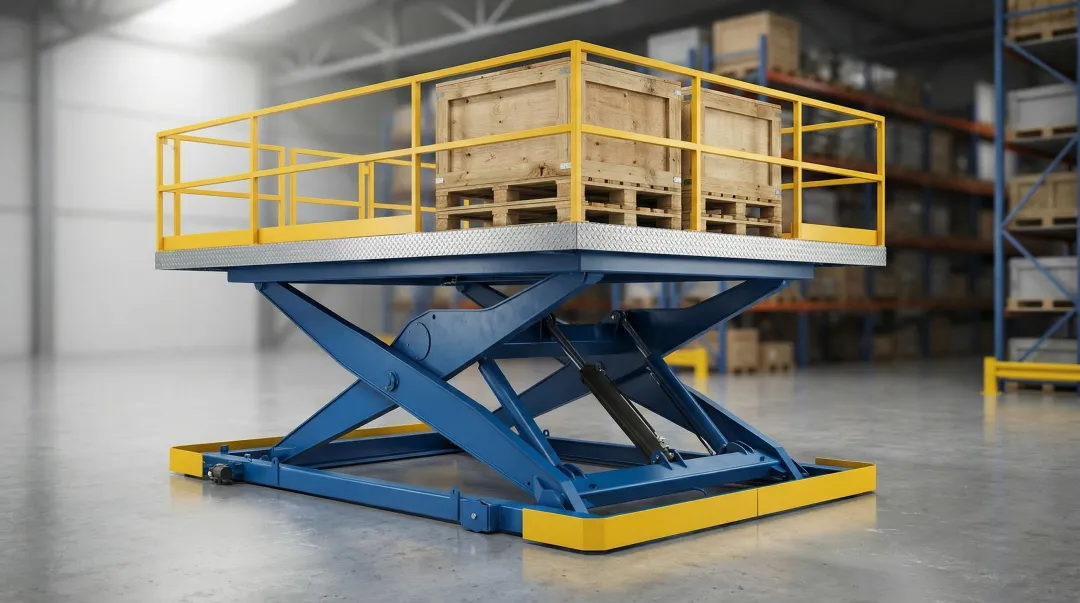

Presto XL Series Heavy-Duty Lift Table
The XL Series is Presto's extended-platform, high-capacity lift table built for warehouses handling oversized or heavy loads that standard lift tables cannot accommodate. It covers weight ratings up to 8,000 lbs and platform sizes that standard lift tables simply don't offer — making it a practical fit for manufacturing and distribution environments with non-standard load dimensions.
| Specification | Details |
|---|---|
| Load Capacity | 2,000 lbs to 6,000 lbs (up to 8,000 lbs in wide-base models) |
| Platform Dimensions | 24" x 36" to 54" x 86" (depending on model configuration) |
| Key Features | Heavy-gauge 3/4" steel plate scissor legs, chrome-plated hydraulic rams with polyurethane seals, lifetime lubricated bearings on all pivot points |
Models range from the XL24 (24" x 36" platform) to the XL60 (24" x 86" platform), with lift heights from 31 to 70 inches depending on configuration. The hinged platform design provides direct access to hydraulic cylinders for maintenance.
Presto PT Series Portable Lift Table
The PT Series is Presto's mobile ergonomic lift solution, designed for flexible warehouse environments where lifting needs to happen at multiple locations across the floor. Unlike fixed lift tables, it rolls to wherever the work is — no dedicated installation point required.
| Specification | Details |
|---|---|
| Load Capacity | 2,000 lbs (PT-20) to 4,000 lbs (PT-40) |
| Lift Height Range | 3.5 inches (lowered) to 85° tilt angle |
| Key Features | Battery-powered operation (12V maintenance-free AGM battery), foot-operated floor lock for stability, push-button hand-held controls with magnetic backing |
Front rigid wheels and large rear swivel casters keep it maneuverable, while the foot-operated floor lock holds it steady during loading and unloading. The tilting function makes it particularly useful for container handling across dynamic workspaces.
Presto PN Series Low-Profile Lift Table
The PN Series (also designated as the XZ Series) is a low-profile scissor lift table engineered for floor-level loading situations — ideal when loads arrive on the ground and need to be raised to working or conveyor height. At just 3/8 inch collapsed height, pallet jacks and loads roll directly onto the platform — no ramp needed.
| Specification | Details |
|---|---|
| Collapsed Height | 3/8 inch (2,000–4,000 lb models); 1/2 inch (6,000 lb model) |
| Load Capacity | 2,000 lbs to 6,000 lbs |
| Key Features | Flush-to-floor pan-style platform design, eliminates need for forklift access, external 1 HP 115V power unit, 6" flexible safety toe guard |
The pan-style platform sits nearly flush with the floor when fully lowered, making it practical for facilities where forklifts are unavailable or needed elsewhere. Platform sizes range from 44" x 48" to 50" x 48", with raised heights reaching approximately 35 inches. This design suits receiving operations and loading dock environments particularly well.
Presto Tilt-Top Lift Table
Presto's Tilt-Top Lift Table is a dual-function model that both raises loads to working height and tilts the platform for improved access to the load face. This combination is common in assembly, packaging, and parts-picking operations. Having both functions in one unit cuts equipment costs and lets operators dial in the exact height and angle for their task — which translates directly to better ergonomics and less fatigue over a shift.
| Specification | Details |
|---|---|
| Tilt Angle Range | 30° or 45° (depending on model configuration) |
| Load Capacity | 1,000 lbs to 4,000 lbs |
| Key Features | Independent control of lift height and tilt angle, tilt cylinder integrated into platform to reduce lowered height, pedestal controls with optional dual foot or hand controls |
Models in the X3WT and X4WT series offer lowered heights of 11.5 inches and raised heights of 47.5 inches, while the XLT series provides similar performance with separate power units for lift and tilt functions. The independent control system allows operators to position loads at the precise height and angle needed for optimal ergonomics.
How We Chose the Best Presto Lift Models
Each model on this list was evaluated across load capacity range, lift height, platform size, operational environment fit, and compliance with ANSI/OSHA ergonomic standards. One common mistake buyers make: choosing by price alone without matching the model to their specific task cycles or load types.
Additional factors considered:
- Matches power source (manual, electric, or pneumatic) to labor availability and budget
- Supports accessories like turntables, die handles, and conveyor tops that extend platform functionality
- Allows straightforward maintenance with accessible critical components
- Factors in total cost of ownership — reduced worker comp claims, faster throughput, and longer equipment life
Source Equipment Company has worked with warehouse and distribution operations since 1989 and carries the full Presto line. If you're unsure which model fits your application, their team can walk you through the options — including Platform Centering Devices that can double or triple lift table service life. Reach them directly at 1-800-743-5545.
Conclusion
Not all Presto lift models serve the same purpose—the right model depends on task type, load weight, required lift height, and whether fixed or mobile operation is needed in your warehouse. A pallet positioner optimized for high-cycle loading differs fundamentally from a low-profile lift designed for floor-level access.
Before finalizing your choice, run through these four decision factors:
- Task type: High-cycle loading, floor-level access, and mobile positioning each call for different configurations
- Load capacity: Match the lift's rated capacity to your heaviest recurring load, not just the average
- Lift height: Confirm the model reaches your required work height without overextending its safe range
- Total cost of ownership: Factor in maintenance cycles, accessory compatibility, and ergonomic ROI alongside sticker price
That last point matters more than most buyers expect. Musculoskeletal disorders cost U.S. businesses $13.7 billion annually—the right lift often recovers its cost through reduced injuries alone, before productivity gains are even counted.
To match the right Presto model to your specific operation, contact Source Equipment Company Inc. at 1-800-743-5545 for a consultation tailored to your workflow and load requirements.
Frequently Asked Questions
What is the capacity of a Presto lift?
Presto lift tables range from approximately 300 lbs for smaller pallet positioners to 6,000 lbs for heavy-duty XL series units, with specialized super heavy-duty models reaching up to 120,000 lbs. Always match capacity to your maximum load weight with appropriate safety margins.
Is Presto a good brand?
Presto Lifts is an established U.S. manufacturer with a strong reputation across warehousing, manufacturing, and distribution sectors. All Presto products exceed ANSI MH29.1, MH29.2, and B56.10 safety standards, and equipment is made at their facility in northeast Arkansas.
Which lift brand is best?
Presto, Southworth, and Bishamon are among the top brands in industrial lifting equipment. Presto stands out for scissor lift tables and pallet positioners in warehouse environments, with heavy-duty construction and pneumatic options. The best fit depends on your load requirements, power source, and budget.
What is a hydraulic lift table used for?
Hydraulic lift tables raise, lower, and position loads at ergonomic working heights to eliminate bending and awkward postures. Common applications include palletizing, order picking, dock loading, assembly line feeding, and conveyor height positioning — reducing injury risk and improving throughput.
Where are Presto lifts made?
Presto Lifts are manufactured in the United States at the company's production facility in northeast Arkansas. Products ship F.O.B. from Manila, AR 72442. Domestic manufacturing supports faster lead times, readily available replacement parts, and responsive technical support for U.S. warehouse operations compared to imported alternatives.
