Introduction
Warehouses, distribution centers, and manufacturing facilities routinely store thousands of SKUs across multiple zones. The wrong shelving choice creates unsafe conditions, wasted vertical space, and operational bottlenecks that ripple through every shift.
Over 900 storage rack incidents were reported to OSHA between 2023 and 2024, including a fatal crushing injury in December 2024. Improper storage infrastructure isn't just inefficient—it's dangerous.
Choosing the right shelving system addresses both risks at once: it protects workers and drives measurable gains in throughput and space utilization. This guide covers 10 heavy-duty options across the most common industrial storage categories—selective pallet racking for forklift access, cantilever racking for long materials, rivet shelving for hand-loaded parts, and more.
TL;DR
- Industrial shelving units can support 1,000–10,000+ lbs per bay, far exceeding consumer-grade products
- Match your system to your load type, floor footprint, and whether forklift access is required
- Key criteria: load rating, frame gauge, ANSI/RMI compliance, adjustability, and scalability
- This guide covers selective pallet racking, cantilever systems, rivet shelving, long-span shelving, and heavy-duty steel units
- Always verify manufacturer-rated load capacities and consult a material handling specialist before installation
What Is Industrial Shelving and Why It Matters for Heavy-Duty Storage
Industrial shelving refers to purpose-built steel storage systems rated for commercial and industrial load capacities, typically deployed in warehouses, distribution centers, manufacturing plants, food service facilities, and retail back rooms. These systems are engineered to withstand dynamic forklift loading, impact forces, and seismic events—conditions that would collapse consumer or garage-grade products.
The operational stakes are real. Wrong shelving choices lead to:
- Collapsed racks and damaged inventory
- OSHA violations under 29 CFR 1910.176
- Workflow disruption across order fulfillment operations
The right system does the opposite—increasing storage density, enabling faster pick-and-pack operations, and maintaining compliance with ANSI MH16.1 standards for pallet racking.
The industrial shelving market spans multiple system types—selective pallet racking, cantilever racking, boltless rivet shelving, long-span shelving, and heavy-duty steel shelving—and selecting the right type is as important as selecting the right brand. The 10 units below cover each of these formats, chosen based on load ratings, deployment versatility, and real-world adoption across industrial settings.
Top 10 Industrial Shelving Units for Heavy Duty Storage
These 10 units were selected based on load capacity, construction quality, certifications, industry adoption, and versatility across warehousing, manufacturing, food service, and distribution applications.
Mecalux Selective Pallet Racking
Mecalux is a major racking manufacturer with decades of deployment across North American distribution and logistics operations. Their selective pallet racking is the industry's most widely deployed format, offering direct forklift access to every pallet position.
Standout factor: Available in roll-formed and structural steel configurations, Mecalux systems feature ANSI MH16.1-compliant design with piston lock connectors that prevent accidental beam disengagement. Beam capacities reach 27,765 lbs per pair at 48" spans, with compatibility for warehouse management system integration via load placard labeling.
| Specification | Details |
|---|---|
| Load Capacity | Up to 27,765 lbs per beam pair (48" span); 14,202 lbs at 96" span |
| Configuration Options | Single and double-deep configurations; uprights available in multiple heights; beam depths vary by application |
| Key Features | ANSI MH16.1 compliant; continuous seam-welded beams; piston lock connectors; rack protection accessories available; compatible with standard pallet types |
Uline Heavy-Duty Steel Shelving
Uline is one of the most widely used industrial supply companies in North America. Their heavy-duty steel shelving line is a staple in warehouses, distribution centers, and back-of-house retail environments due to same-day availability and consistent build quality.
Standout factor: Boltless assembly with adjustable shelf heights on 1.5" increments makes this a fast-deploy option for facilities needing reliable static storage without forklift access. The H-4862 model supports 3,250 lbs per shelf with a total unit capacity of 13,000 lbs.
| Specification | Details |
|---|---|
| Load Capacity | 3,250 lbs per shelf; 13,000 lbs total unit capacity (H-4862 model); lighter models offer 700 lbs per shelf |
| Dimensions | Standard configurations: 60" x 24" x 72", 96" x 24" x 96", and multiple other widths/depths |
| Key Features | Boltless snap-together assembly; 1.5" shelf height adjustability; powder-coated steel construction; assembly time under 30 minutes |
Edsal Industrial Steel Shelving
Edsal Manufacturing has produced industrial storage solutions since 1950 and is widely stocked at major home improvement and industrial supply retailers across the U.S. Their industrial steel shelving units are commonly deployed in light manufacturing and storage rooms.
Standout factor: Rivet-style assembly with no tools required, offered in multiple finishes including NSF-certified options for food service use. The MuscleRack line supports 1,000 lbs per shelf with a total unit capacity of 5,000 lbs.
| Specification | Details |
|---|---|
| Load Capacity | 1,000 lbs per shelf (evenly distributed); 5,000 lbs total unit capacity |
| Dimensions | Multiple configurations available; common sizes include 72" height with varying widths and depths |
| Key Features | NSF Certified for dry food storage; boltless rivet-lock design; textured powder-coated finish; tool-free assembly |
Lyon Heavy-Duty Rivet Shelving
Lyon LLC is an American manufacturer with over 100 years in industrial storage. Their rivet shelving line is designed for medium-to-heavy-duty applications across tool cribs, parts storage rooms, and distribution pick areas.
Standout factor: Heavy-gauge steel construction with gray powder-coat finish and industrial-grade rivet post design allows tool-free shelf height adjustment. This system balances load capacity with reconfiguration flexibility for evolving storage needs.
| Specification | Details |
|---|---|
| Load Capacity | 800–1,200 lbs per shelf depending on configuration; total unit capacity varies by model |
| Dimensions | Available in starter and add-on unit configurations; standard heights 72"–96"; widths 36"–48" |
| Key Features | Tool-free rivet assembly; heavy-gauge steel posts and shelves; gray powder-coat finish; accessories include wire decking and dividers |
Tennsco Heavy-Duty Steel Shelving
Tennsco Corporation, founded in 1939, is a Tennessee-based manufacturer producing heavy-duty steel shelving used extensively in government facilities, military depots, industrial warehouses, and distribution operations across the U.S.
Standout factor: All-welded, bolt-together, and boltless configurations available in a wide range of sizes. Units feature heavy-gauge steel construction with durable gray enamel finish and are frequently specified in high-SKU parts storage and archive environments.
| Specification | Details |
|---|---|
| Load Capacity | 175–200+ lbs for standard duty; reinforced industrial units support higher loads |
| Dimensions | Standard and custom width, depth, and height options; Z-Line Die Rack configurations available for specialized applications |
| Key Features | Multiple construction types (welded, bolt-together, boltless); industrial gray enamel finish; government and military adoption; reinforced steel overlays for heavy die storage |
Equipto Industrial Steel Shelving
Equipto, an Illinois-based manufacturer operating since 1950, specializes in modular industrial shelving and storage systems used in aerospace, automotive, and general manufacturing environments.
Standout factor: Highly configurable modular system with interchangeable components allows facilities to reconfigure storage layouts without new purchases. The V-Grip system supports up to 3,400 lbs per level with spans up to 8 feet, with 48 different drawer sizes offering 200–400 lb capacities.
| Specification | Details |
|---|---|
| Load Capacity | 225 lbs per shelf (adjustable configurations); bulk rack options up to 3,400 lbs per level; drawers rated 200–400 lbs |
| Dimensions | Modular bay dimensions with spans up to 8 feet; shelf adjustability in 2" increments |
| Key Features | V-Grip modular interchangeability; 48 drawer size options; 18-gauge steel shelves; documented use in automotive and aerospace sectors; accessory ecosystem includes bins and dividers |
Steel King Structural Pallet Racking
Steel King Industries, a Wisconsin-based manufacturer, produces structural steel pallet racking used in high-impact environments such as freezer warehouses, cold storage facilities, and facilities with repeated forklift contact.
Standout factor: Structural channel columns rather than roll-formed steel deliver measurably greater impact resistance and beam load ratings. The SK2000 series offers 250% more frontal impact strength than open-back columns, making it ideal for high-throughput distribution centers and food-grade cold storage.
| Specification | Details |
|---|---|
| Load Capacity | High-capacity beams and uprights; specific ratings depend on configuration and span |
| Dimensions | Bay widths, beam depths, and column heights customizable; uprights available in multiple heights for vertical storage maximization |
| Key Features | Hot-rolled structural steel channels; closed-tube SK2000 design for superior impact resistance; SK ADVANTX system for cold storage applications; ANSI MH16.1 compliant |
Vestil Cantilever Racking
Vestil Manufacturing specializes in material handling equipment, including cantilever racking purpose-built for storing long, bulky, or irregularly shaped materials such as lumber, pipe, steel bar, and tubing in manufacturing and distribution facilities.
Standout factor: Open-face arm design eliminates vertical column obstructions, enabling forklift or hand-loading of materials up to 20+ feet in length. Heavy-duty single-sided uprights support 24,700 lbs, with individual arms rated for 1,000 lbs each.
| Specification | Details |
|---|---|
| Load Capacity | Individual arms: 1,000 lbs; single-sided uprights: up to 24,700 lbs (10 ft height) |
| Dimensions | Column heights: 6 ft to 14 ft; arm lengths: 12"–48"; single and double-sided configurations |
| Key Features | Adjustable arms in 1.5" increments; blue/orange powder coat finish; single and double-sided options; ideal for lumber, pipe, tubing, and bar stock |
Durham Manufacturing Heavy-Duty Shelving
Durham Manufacturing, based in Durham, Connecticut, has produced American-made steel storage solutions since 1922, serving industrial parts storage, MRO supply rooms, and shop floor organization across manufacturing sectors.
Standout factor: All-welded construction rated for 2,500 lbs per shelf, available in a wide range of specialty formats including enclosed, open, and compartment shelving. Corrosion-resistant finishes suit washdown and food-adjacent environments.
| Specification | Details |
|---|---|
| Load Capacity | 2,500 lbs per shelf; total unit capacity varies by configuration |
| Dimensions | Standard and custom dimensions available; enclosed shelving options (e.g., 36" x 18" x 60"); specialty compartment configurations |
| Key Features | All-welded construction; 12-gauge corner posts and 14-gauge shelves; gray powder-coat finish; ships fully assembled; American manufacturing since 1922; corrosion-resistant options for washdown environments |
Hallowell Heavy-Duty Steel Shelving
Hallowell is an American industrial storage manufacturer with a long track record in military, government, and commercial facilities, covering high-density, high-load static storage applications.
Standout factor: Heavy-gauge steel shelving available in multiple configurations including open, closed, and louvered panel styles. TAA-compliant units available for government procurement, with high-capacity boltless shelves holding up to 2,300 lbs per shelf.
| Specification | Details |
|---|---|
| Load Capacity | 2,300 lbs per shelf (high-capacity boltless); 1,250 lbs per shelf in add-on units; 6,250 lbs per unit |
| Dimensions | Heights: 84" and 96"; widths up to 96"; multiple depth options available |
| Key Features | TAA-compliant options; Made in USA; 1.5" shelf adjustability; black powder-coat finish; government and military adoption; open, closed, and louvered panel styles |

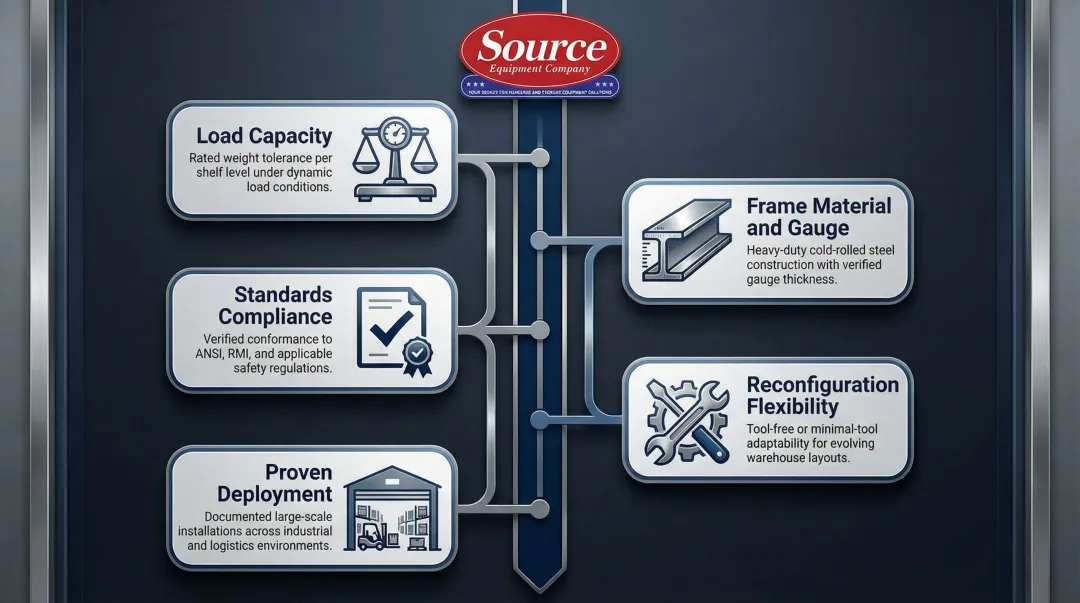

How We Chose the Best Industrial Shelving Units
Each unit was evaluated across five criteria:
- Load capacity — per-shelf and total unit ratings under real operating conditions
- Frame material and gauge — steel grade, weld quality, and upright thickness
- Standards compliance — ANSI MH16.1 for pallet racking and NSF certification where food safety applies
- Reconfiguration flexibility — beam adjustability, accessory compatibility, and expansion options
- Proven deployment — documented use across warehousing, manufacturing, and distribution environments
These criteria matter because the most common purchasing mistake is evaluating units on price-per-shelf rather than total cost of ownership — which includes reconfiguration costs, replacement hardware availability, and long-term load compliance.
Source Equipment Company applies this same framework when working with clients: analyzing floor space, inventory weight and dimensions, workflow patterns, and forklift clearance before recommending a system. When units are matched to actual operational needs, the results are measurable — clients have reported 20–30% improvements in order fulfillment speed and storage density.
Before purchasing, run through these three checks:
- Calculate max weight per shelf position — multiply your heaviest item by a safety factor of 1.25–1.5
- Identify your loading method — hand loading and forklift loading place very different demands on frame and beam specs
- Check seismic zone requirements — facilities in higher-risk zones may require additional anchoring or bracing
Consulting a material handling specialist helps avoid under-specifying systems for your actual operational loads.
Conclusion
The right industrial shelving unit is not a one-size-fits-all decision. The 10 units above represent different system types suited to different operational demands—from high-throughput pallet racking to parts storage rivet shelving. Choosing based on load rating, regulatory compliance, and scalability rather than lowest upfront cost leads to safer, more efficient facilities.
Source Equipment Company has been helping warehouses, distribution centers, food service operations, and manufacturers specify and source the right heavy-duty storage solutions since 1989. Our team provides expert consultation and custom configuration guidance to ensure your storage systems meet OSHA, ANSI, and RMI standards—with clients typically seeing 20–30% improvements in order fulfillment speeds.
Contact us for nationwide delivery of industrial shelving systems that fit your operation.
Frequently Asked Questions
How much weight can heavy-duty shelves hold?
Heavy-duty industrial shelving ranges from 800 lbs per shelf on boltless steel units to 5,000+ lbs per beam on structural pallet racking. Total unit capacity depends on frame gauge, beam depth, and the number of shelf levels—always verify the manufacturer's rated load, not the unit's visual appearance.
What is the strongest type of shelf?
Structural steel pallet racking with channel columns (rather than roll-formed uprights) delivers the highest load ratings in industrial environments, followed by all-welded heavy-gauge steel shelving. Which type suits your facility depends on the load type: dynamic (forklift) loading calls for structural pallet racking, while static hand-placed storage is well-served by welded steel shelving.
What are warehouse storage shelves called?
The most common terms are pallet racking (for forklift-loaded systems), shelving units or steel shelving (for hand-loaded static storage), and cantilever racking (for long materials). The broader category is often called storage racking, industrial racking, or warehouse racking systems.
What is the difference between light-duty and heavy-duty industrial shelving?
Light-duty shelving typically handles 200–500 lbs per shelf using thinner gauge steel or wire construction, while heavy-duty shelving uses heavier-gauge steel frames, welded or structural connections, and per-shelf ratings of 800–5,000+ lbs. Heavy-duty units are required wherever forklift loading, bulk inventory, or high-cycle picking is involved.
What safety standards should industrial shelving meet?
Pallet racking should comply with ANSI MH16.1 (the Rack Manufacturers Institute standard), food service shelving may require NSF certification, and OSHA 1910.176 governs safe storage practices in general industry. UL Listed and ANSI-compliant products provide baseline assurance of tested load performance.
How do I determine the right load capacity for my industrial shelving?
Start by identifying your heaviest load per shelf position, then apply a safety factor of 1.25–1.5. From there, consider:
- Whether loading is by hand or forklift (determines racking type)
- Seismic zone requirements for your facility location
- Future growth in inventory weight or volume
A material handling specialist — like the team at Source Equipment Company — can help verify you're not under-specifying before purchase.
